1 / 4
Hettich 9943 Intermat Inset Hinge 48052
110° Intermat hinge (Intermat 9943), inset, Opening angle 110°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)
Please note hinge mounting plates and screws are not included, please purchase separately.
Please note hinge mounting plates and screws are not included, please purchase separately.
- 110° Intermat hinge
- With self closing feature (Intermat 9943)
- Quality classification under EN 15570, Level 3
- Opening angle 110°
- For door thickness 15 - 25 mm
- Door mounting option inset (B -3.5)

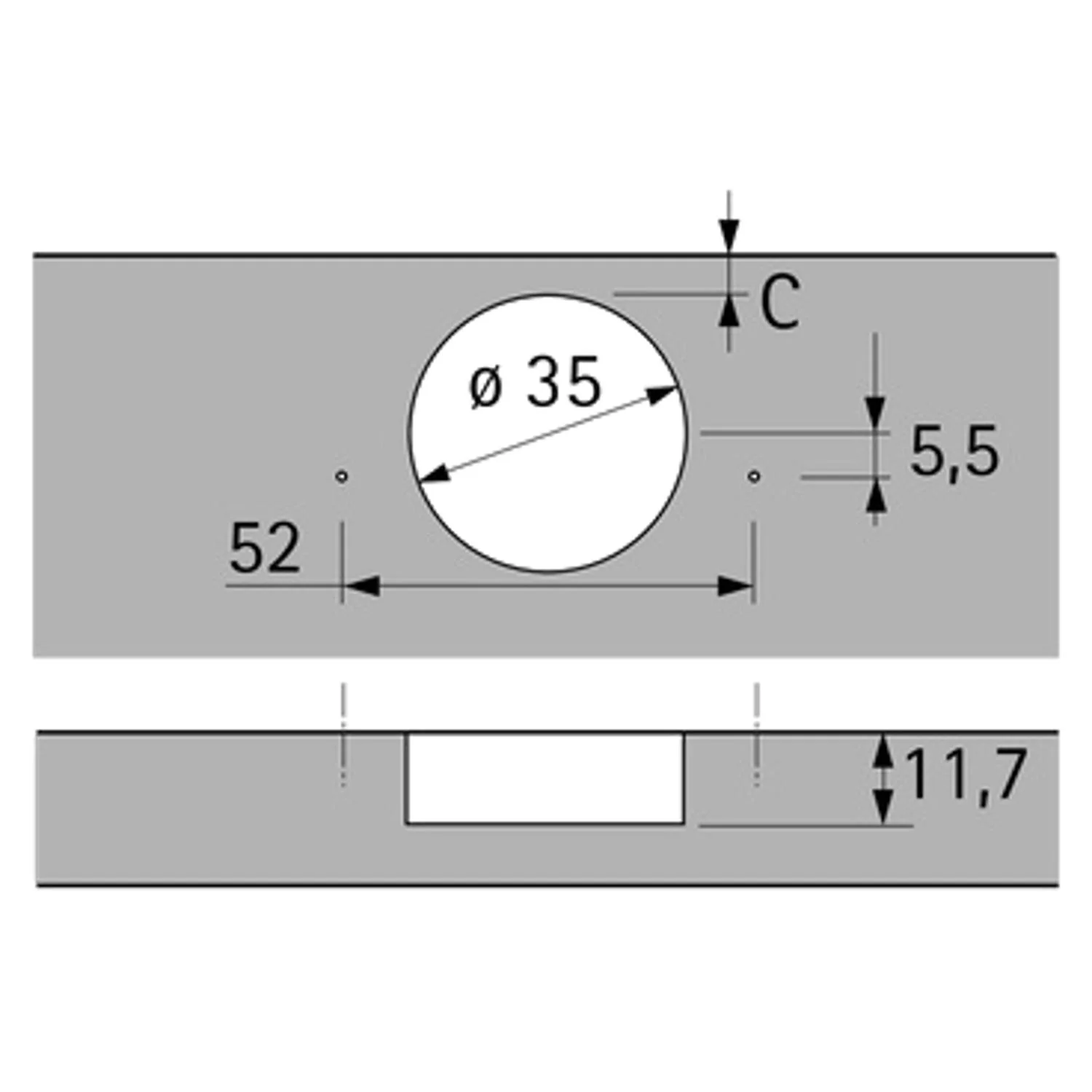

- TH - drilling pattern 52 x 5.5 mm
- Cup depth 11.6 mm

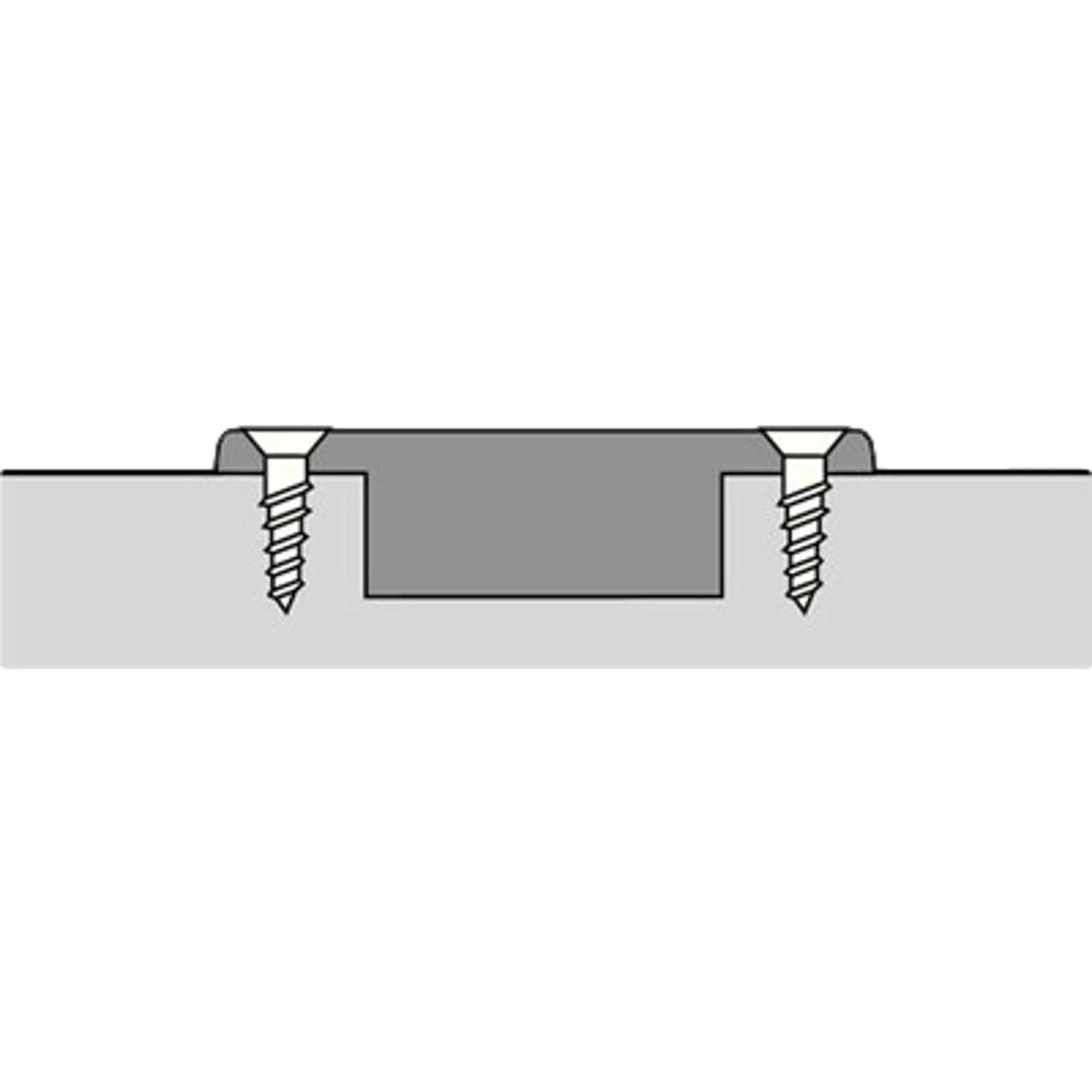

- Installation for screwing on
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +2.5 mm / -1.5 mm
- Height adjustment at mounting plate
- Steel nickel plated
- Hettich model: 48052
$0.24
Original: $0.80
-70%Hettich 9943 Intermat Inset Hinge 48052—
$0.80
$0.24Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
110° Intermat hinge (Intermat 9943), inset, Opening angle 110°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)
Please note hinge mounting plates and screws are not included, please purchase separately.
Please note hinge mounting plates and screws are not included, please purchase separately.
- 110° Intermat hinge
- With self closing feature (Intermat 9943)
- Quality classification under EN 15570, Level 3
- Opening angle 110°
- For door thickness 15 - 25 mm
- Door mounting option inset (B -3.5)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 11.6 mm
- Installation for screwing on
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +2.5 mm / -1.5 mm
- Height adjustment at mounting plate
- Steel nickel plated
- Hettich model: 48052
